Product Dimensions 11"h x 36.5"w x 15.44"d

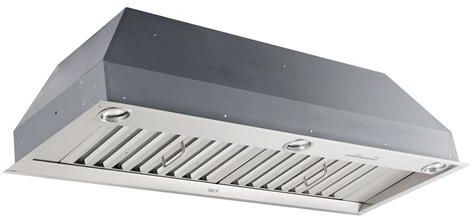

Flush built-in design has an integral liner to protect cabinets powered by the exclusive iQ Blower System™ with GPS Technology for the quietest, most energy efficient and fastest smoke & odor removal available in a range hood. The PK22 Series offers different widths so you can choose the right size to suit your kitchen and cooking style.Read More
View Options
Exterior blower provides higher exhaust options, ranging from 600 to 1500 CFM (purchased separately). Specially designed to be installed in custom canopy hoods for use over residential commercial-style cooking surfaces.
Italian design
Cabinet mount – custom application
Finish: 430 Stainless Steel
Width: 36-1/2”, 43-7/16”
10” round duct connector/backdraft damper
Halogen lighting (2 bulbs on PKEX2239 or 3 bulbs on PKEX2245, included. Type GU10, MR16 shielded, 120 volt, 50 watts max.)
Electronic, push-button controls with 4 speeds, 3 light settings, 10-minute delay off and 24-hour filter clean indicator
Exterior mounted blower available in either 600, 900,
1200, or 1500 CFM, (purchased separately)
Easily accessible, dishwasher-safe aluminum/stainless steel hybrid baffle filters
Less restrictive than traditional baffle filters
Less mess/dripping than mesh filters
For indoor use only
General Specs | |
Width (in.) | 36.5 |
Height (in.) | 11 |
Duct Size (in.) | 8 |
Depth (in.) | 15.44 |
Color | Stainless Steel |
Made In | Canada |
Appliance Fit Width (cm.) | 93 |
Made In Canada | Yes |
Color Finish Name | Stainless Steel |
Range Hood Type | Insert |
ENERGY STAR Certified | No |
Appliance Fit Width (in.) | 37 |
Width (cm) | 92.71 |
Height (cm.) | 27.94 |
Depth (cm.) | 39.22 |
Dimensions | |
Max Height Above Cooktop: | 30 |
Min Height Above Cooktop: | 24 |
Display | |
Controls: | Mechanical |
General Features | |
Filter Type: | Hi-Flow™ Baffle Filter |
Other | |
Number of Lights: | 2 |
Settings: | 3 |
Air Mover(s) Speed: | 3 Speed |
Number of Air Movers: | 1 |
Sones (Noise Level) Rating: | 11.5 |
Styling | |
Design: | Celatoe |
