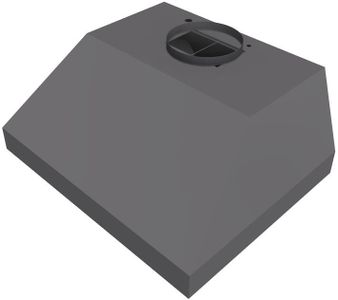

Vent A Hood® Premier Magic Lung® 29" Gunsmoke Wall Mounted Insert Liner


Model #:

BH228PSLDGS

Model #: BH228PSLDGS
590276
Vent-A-Hood
$2,414.00
Call for availability

At a Glance

Product Dimensions 12"h x 28.375"w x 22.50"d

The extra size and blower capacity of the BHPSLD model can be used above professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish (painted or stainless steel). All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.Read More

$2,414.00

What We Offer

Protect Your Purchase

View Options

None Selected

Please call 705-526-7811 for ETA

Get to know this product.

Product Overview

Product Overview

The extra size and blower capacity of the BHPSLD model can be used above professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish (painted or stainless steel). All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.

Sones: 6.5

Number of Lights : 2

CFM: 600

Useful Documents
Specifications

General Specs

Width (in.)28.375
Height (in.)12
Duct Size (in.)8
Depth (in.)22.50
CollectionPremier Magic Lung®
ColorGray
Appliance Fit Width (cm.)72
Color Finish NameGunsmoke
Range Hood TypeInsert
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)29
Maximum CFM600
Bulb TypeLED
Sones Rating6.5
Height Above Cooktop27 - 30
Width (cm)72.07
Height (cm.)30.48
Depth (cm.)57.15
Height Above Cooktop Centimeter68.58 - 76.20
Voltage115
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

More Information

RPM1550
CFM SP@0.0"600
Equiv. CFM$900
CFM SP@0.1"531
CFM SP@0.2"480
CFM SP@0.3"430
