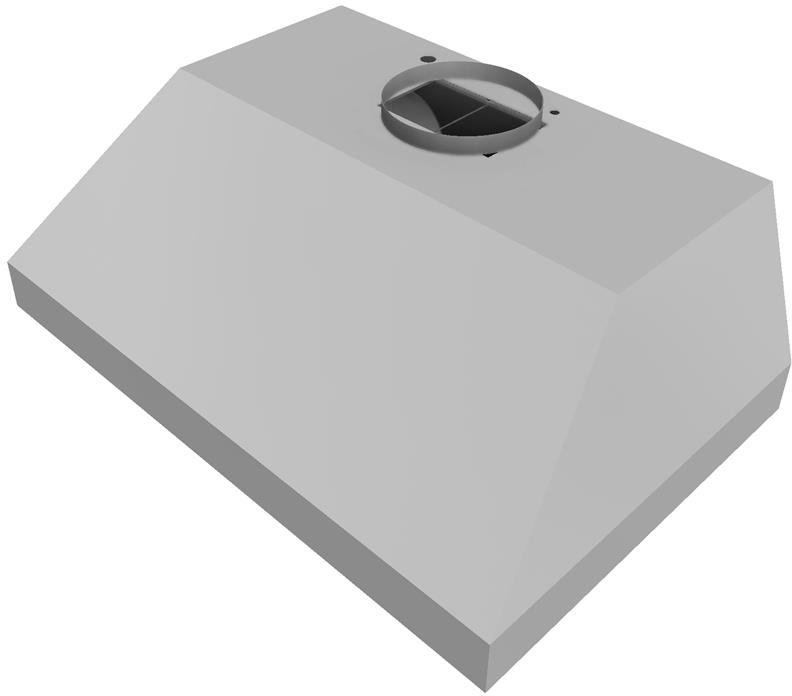

The extra size and blower capacity of the BHPSLD model can be used above professional-style cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish (painted or stainless steel). All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.
RPM | 1550 |
---|---|
CFM SP@0.0" | 1350 |
Equiv. CFM$ | 900 |
CFM SP@0.1" | 804 |
CFM SP@0.2" | 725 |
CFM SP@0.3" | 655 |
Width (in.) | 52.375 |
---|---|
Height (in.) | 12 |
Duct Size (in.) | 10 |
Depth (in.) | 22.50 |
Collection | Premier Magic Lung® |
Appliance Color | Stainless Steel |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
ENERGY STAR Certified | No |
Appliance Fit Width (in.) | 53 |
Maximum CFM | 900 |
Bulb Type | LED |
Sones Rating | 6.3 |
Height Above Cooktop | 27 - 30 |
Width (cm) | 133.03 |
Height (cm) | 30.48 |
Depth (cm) | 57.15 |
Height Above Cooktop Centimeter | 68.58cm - 76.2cm |
Voltage | 115 |
The standard ventilation of the BHPSLD model is intended for use over standard cooking equipment. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit. Special Notes: LED lights. This model is not available with heat lamps.
Sones: 6.3
Number of Lights : 3
CFM: 900
RPM | 1550 |
CFM SP@0.0" | 1350 |
Equiv. CFM$ | 900 |
CFM SP@0.1" | 804 |
CFM SP@0.2" | 725 |
CFM SP@0.3" | 655 |
Width (in.) | 52.375 |
Height (in.) | 12 |
Duct Size (in.) | 10 |
Depth (in.) | 22.50 |
Collection | Premier Magic Lung® |
Appliance Color | Stainless Steel |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
ENERGY STAR Certified | No |
Appliance Fit Width (in.) | 53 |
Maximum CFM | 900 |
Bulb Type | LED |
Sones Rating | 6.3 |
Height Above Cooktop | 27 - 30 |
Width (cm) | 133.03 |
Height (cm) | 30.48 |
Depth (cm) | 57.15 |
Height Above Cooktop Centimeter | 68.58cm - 76.2cm |
Voltage | 115 |
